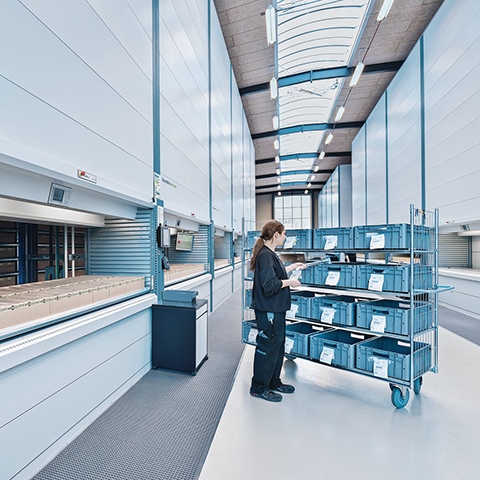

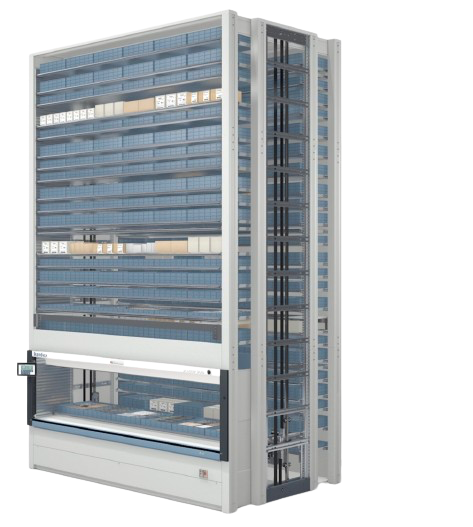

The Vertical Lift Module (VLM) from Kardex is an innovative storage solution designed for a wide range of applications, including manufacturing, distribution, retail, and warehouse operations. It features an enclosed, shelf-based system that maximizes storage density while minimizing the footprint.
The VLM offers flexibility, efficiency, and security, making it an ideal choice for optimizing space and enhancing inventory management. Its advanced design ensures efficient storage and retrieval, providing a secure and compact solution for various storage needs.
-
The height can be quickly and easily adjusted to accommodate future needs, providing flexibility and adaptability for changing storage requirements.space usage.
-
Provides faster travel and access times, reduced noise levels, and increased machine longevity. These features enhance operational efficiency and ensure a quieter, more durable system for your storage needs.
-
Offers storage flexibility by allowing the use of various capacity trays within a single unit. This feature enables the system to accommodate a wide range of items and meet specific storage requirements, providing a versatile solution for different types of inventory.
-
Seamlessly integrates with existing Warehouse Management Systems (WMS) or Enterprise Resource Planning (ERP) systems through the FastPic5 software.
This integration enhances inventory management and operational efficiency, providing a streamlined solution for automated storage and retrieval processes.
-

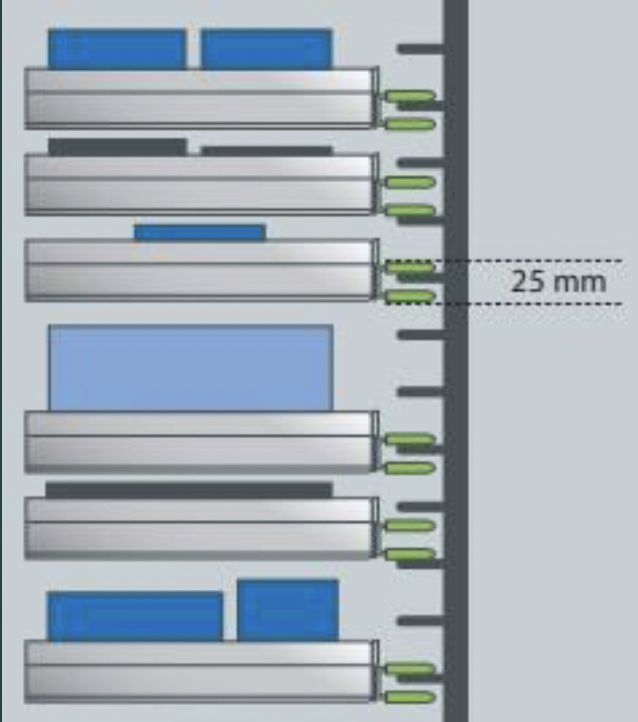

Automatically scans the height of the products stored on each tray, optimizing storage density within the unit.
This feature ensures that space is used efficiently, maximizing the storage capacity and accommodating items of varying sizes while maintaining organization.
-
Monitors both tray and unit load to prevent overloading.
This system ensures the safety and stability of stored items by maintaining optimal weight distribution, protecting both the trays and the overall unit from potential damage due to excessive weight.
-
Enables efficient pre-picking by allowing an operator to work with one tray in the access opening while the extractor simultaneously prepares the next tray for delivery behind the shutter doors.
This feature increases productivity by minimizing wait times between picking operations, ensuring a smooth and continuous workflow.
-
Delivers trays to the user's specified ergonomic height, enhancing comfort and efficiency. Additionally, it allows two trays to be presented in the access opening simultaneously, enabling operators to access one tray while the next is being prepared.
This feature increases productivity by facilitating continuous workflow and reducing downtime between operations.
Model
Unit Dimensions
Width
5.2 to 14.4 ft ( 1.580 to 4.380 mm)
Height
8.4 to 98.6 ft (2.550 to 30.050 mm)
Depth
7.6 to 14.1 ft. (2.312 to 4.292 mm)
Model
Tray Dimensions
Width
4.1 to 13.3 ft ( 1.250 to 4.050 mm)
Height
Adjustment Pitch 1in (25mm)
Depth
2 to 2.8 ft. (610 to 1,270mm)
Tray Pitch
3in (75mm)
Max Loadup
Max Loadup to 1,598 lbs (725kgs)
