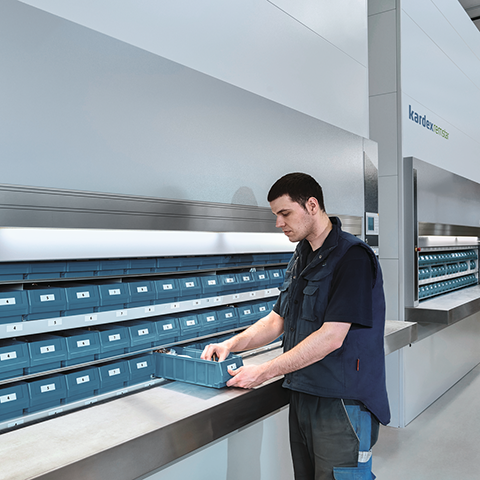

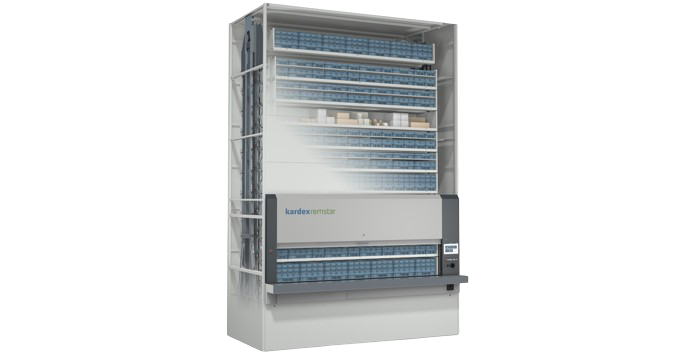

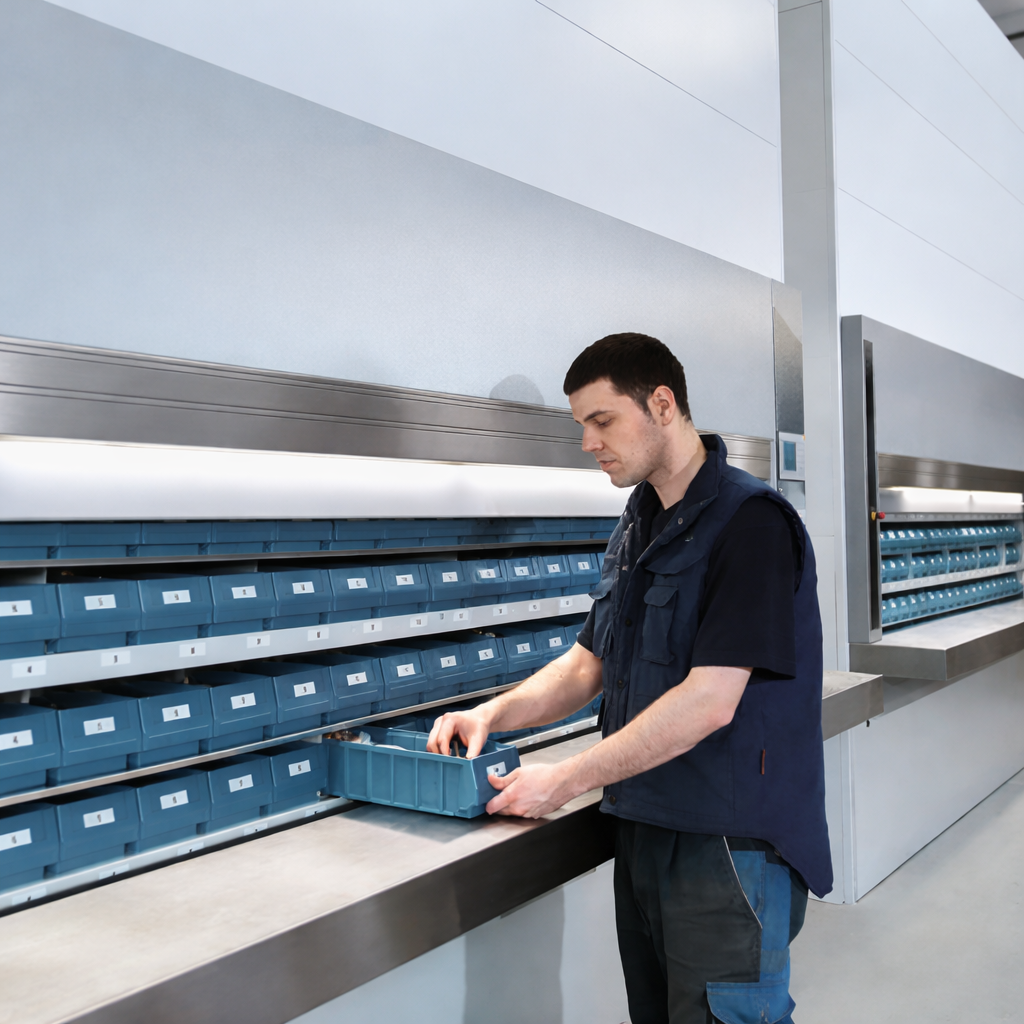

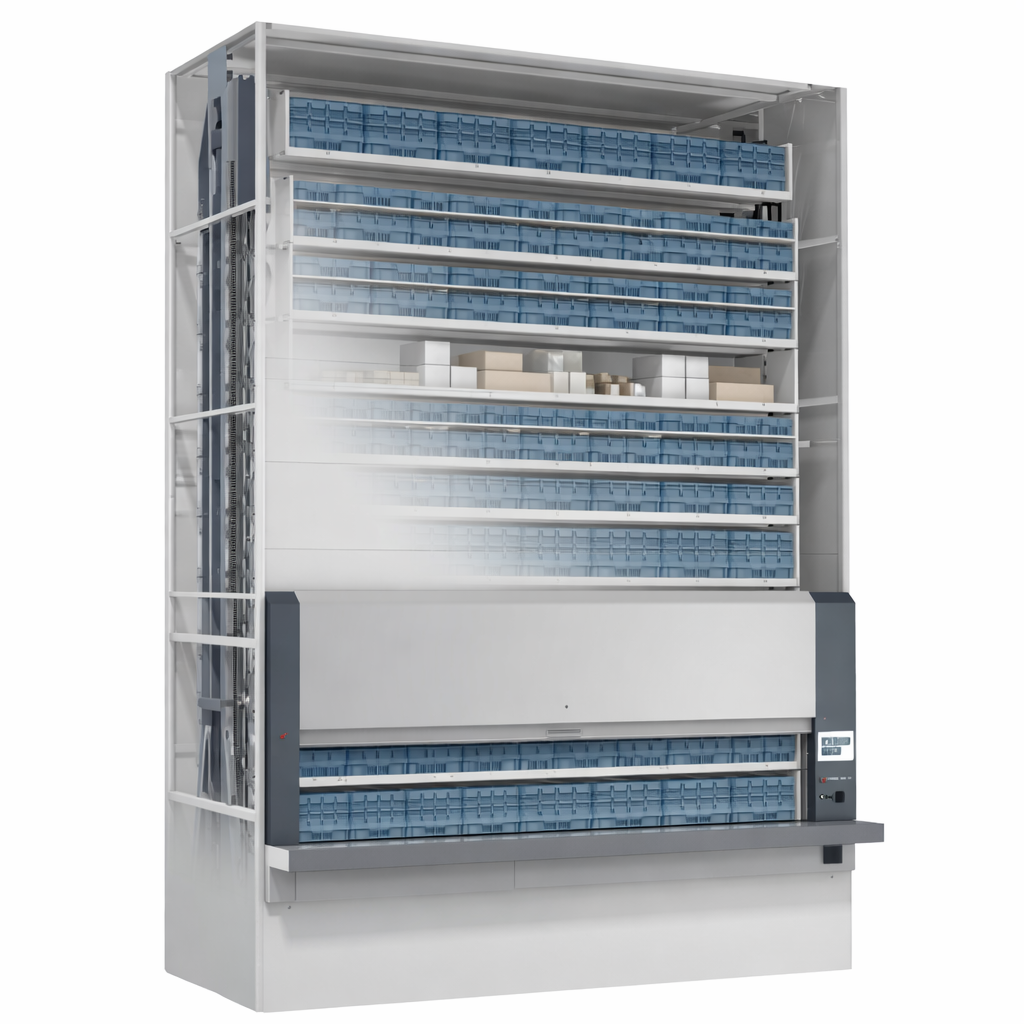

The Kardex Megamat is a Vertical Carousel Module (VCM) that operates using the paternoster principle, offering quick and precise access to stored items. This advanced system employs the latest technologies and consists of carriers fixed to a chain drive, powered by a motor to move in a continuous vertical loop along a track, capable of operating in both forward and reverse directions.
-
In the event of a power outage, the emergency hand crank ensures that access to stored products is maintained at all times.
-
The new chain tensioner significantly reduces the wear and tear on the load chain, resulting in a more reliable and durable storage system
-
The lockable sliding door moves smoothly, either automatically or manually, ensuring ease of use.
This design feature guarantees that employees can continue working without interruptions, maintaining productivity and efficiency.
-
The innovative clip system enables quick, easy, and secure panel assembly, enhancing system stability.
This increased stability provides maximum protection for both stored goods and warehouse workers, ensuring a safe and efficient storage environment.
Kardex Megamat Models
Kardex Megamat 180
Efficient storage and fast retrieval of lightweight loads.
The Kardex Megamat 180 is specifically designed for the efficient storage and retrieval of small parts. It is an ideal solution for industries such as hospitality, healthcare, automotive manufacturing, mechanical engineering, and electronics. This system provides fast access to lightweight loads, making it an excellent choice for environments that require precise and reliable picking and storage solutions.
Kardex Megamat 350
Ideal for medium-sized loads.
The Kardex Megamat 350 is versatile and integrates well into various production processes. It can be used as an interim storage solution for semi-finished products or as buffer storage between production steps. This flexibility makes it suitable for diverse applications in different industries, ensuring efficient workflow and organization..
Kardex Megamat 650
For heavy loads of up to 650 kg per carrier
The Kardex Megamat 650 is highly adaptable and can be utilized in various production settings. It serves effectively as an interim storage solution for semi-finished products or as a storage buffer during drying phases. This versatility allows it to seamlessly integrate into different stages of the production process, enhancing efficiency and workflow management across diverse industries.
Model
Megamat 180
Width
1,875 to 3,875 mm
Height
2,210 to 7,510 mm
Depth
1,251 mm, 1,441 mm, and 1,631 mm*
Max. 180 kg
Load per Carrier
Max. 6,000 kg
Unit Load
Model
Megamat 350
Width
1,875 to 4,275 mm
Height
2,360 to 10,010 mm
Depth
1,271 mm, 1,471 mm, and 1,671 mm*
Load per Carrier
Max. 350 kg
Max. 12,500 kg
Unit Load
Model
Megamat 650
Width
1,975 to 4,275 mm
Height
2,360 to 10,010 mm
Depth
1,311 mm, 1,511 mm, and 1,711 mm*
Load per Carrier
Max. 650 kg
Unit Load
Max. 19,000 kg
Product Add-Ons

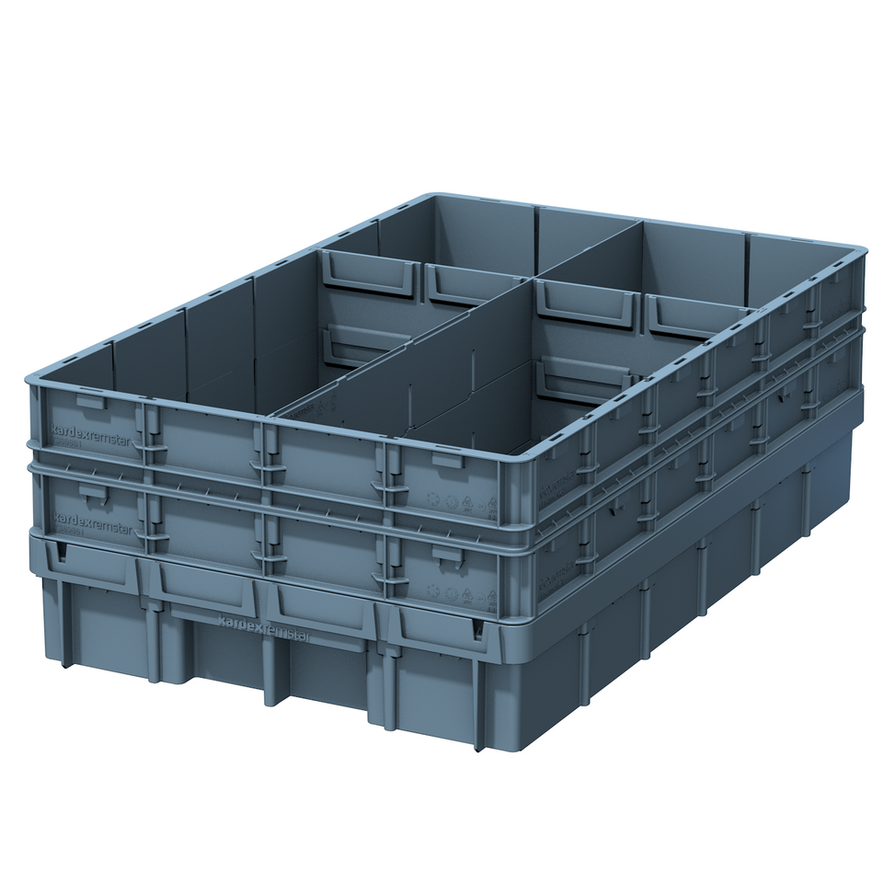

The New Kardex VCM Box
The Kardex VCM Box is specifically designed for the Vertical Carousel Module (VCM), providing a flexible and customizable storage solution. It is available in widths of 200 mm or 400 mm and depths of 425 mm, 525 mm, or 625 mm.
The base can be adjusted using different frames and dividers to create individualized storage spaces for various items. Integrated fixed label holders in the front area help with organization and easy identification of contents.
Software Solutions
Keytec
Keytec is the essential storage location management system within the Kardex Power Pick System. It connects warehouses, storage units, and workstations, providing comprehensive and transparent resource management. Keytec offers tools for managing user rights, bins, materials, warehouses, and storage spaces. It includes features for simple reporting with pre-produced lists and reports, and suggests storage spaces automatically. It facilitates unscheduled stock placements, returns, and removals, ensuring efficient and seamless stock movement management.
Power Pick Software Solutions
The Kardex Power Pick System is a versatile software solution for automated storage and retrieval systems (ASRS) that supports a range of smart picking strategies. It optimizes both dynamic and static storage systems, including manual storage areas like pallets, shelves, and drawer cabinets. This fully integrated solution reduces picking travel time, significantly shortens order picking time, frees up valuable warehouse resources, and boosts productivity.

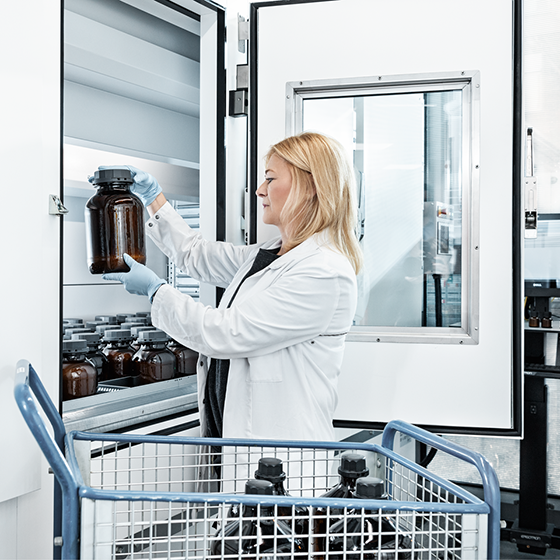

Controlled Environment
Inventory sometimes requires special storage conditions. These solutions can be seamlessly integrated into your storage and retrieval system, ensuring that sensitive goods are always protected according to their required conditions. This customization allows for optimal preservation and security of inventory, regardless of the unique requirements.
