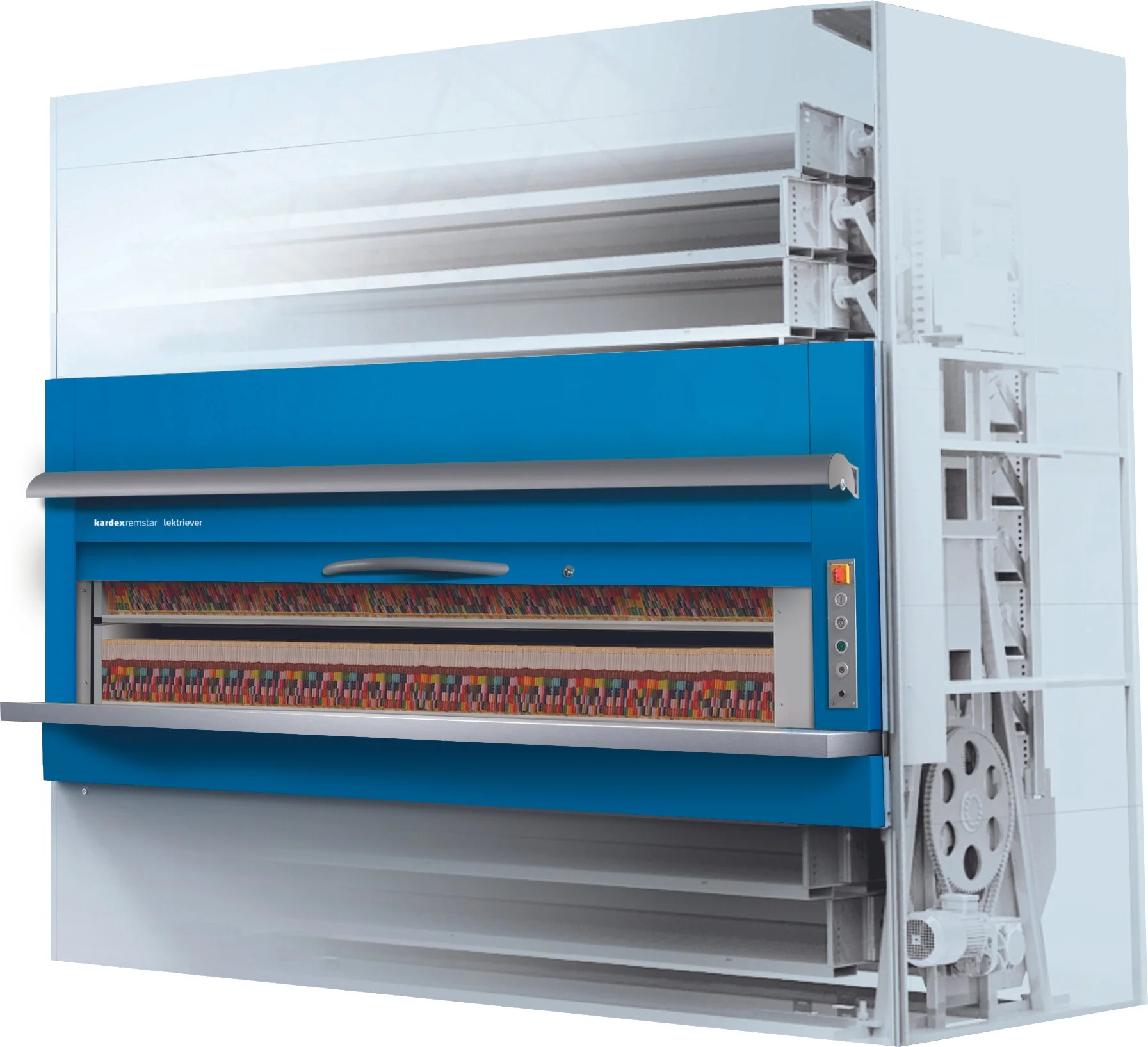

The Lektriever (now Megamat) is an advanced vertical storage system designed to optimize space and efficiency. It features a series of vertically arranged rotating shelves (carriers), which are controlled by an electronic keypad.

This system allows for easy retrieval of files and inventory with just a push of a button or a barcode scan. The Lektriever delivers items directly to an ergonomic work counter, providing a user-friendly and efficient storage solution.

It is available in various models, including the 115, 120, and 125, each tailored to different space and application needs.

  • The Lektriever system offers flexible storage configurations, with options ranging from 8 to 31 carriers, allowing for customized solutions based on specific storage needs.

    Each shelf level can accommodate up to 115 linear filing inches, allowing for a 70% reduction in valuable floor space usage.

  • The Lektriever system includes an overhead task light to enhance visibility, ensuring clear and efficient access to stored items.

  • Equipped with two-part locking security doors, providing enhanced protection and controlled access to stored items.

  • The Lektriever system offers various control options, ranging from basic push-button controls to advanced PC integration, catering to different user needs and preferences for ease of operation and customization.

    • Full Light Curtain: Detects any obstruction in the access area to prevent accidents.

    • Emergency Stop Button(s): Instantly halts the system in case of an emergency.

    • Two Safety Touch Bars: Provides additional safety by stopping the system if touched during operation.

  • The Lektriever system offers versatile work counter options, including:

    • Electric: Adjustable with one-touch operation for seated or standing positions.

    • Mechanical: Manually adjustable between seated and standing heights.

    • Folding: Can be folded down to provide additional aisle space when needed.

    • Fixed: Available in both standing and seated configurations, set at a specific height.

    These options ensure ergonomic and comfortable use, tailored to various user preferences and requirements.

  • The Lektriever system can be customized with any RAL color combination, allowing it to match any decor or branding requirements. This flexibility in color selection ensures that the unit can seamlessly integrate into various environments, from office spaces to industrial settings.

  • Seamlessly integrate with various software solutions for efficient file and item tracking. It supports barcodes, color-coded labels, and other advanced tracking methods, allowing for streamlined inventory management and easy retrieval of stored items.

Model

Megamat 115

Width

2,560 mm; 2,947 mm; 3,269 mm (101 in; 116 in; 129 in)

Height

2,200 - 3,700 mm (87 - 146 in)

Depth

925 mm (37 in)

100 - 150 kg (220 - 330 lbs)

Load per Carrier

Model

Megamat 120

Width

2,560 mm; 2,947 mm; 3,269 mm (101 in; 116 in; 129 in)

Height

2,250 - 3,700 mm (89 - 146 in)

Depth

1,155 mm; 1,175 mm (46 in; 47 in)

Load per Carrier

100 - 150 kg (220 - 330 lbs)

Model

Megamat 125

Width

2,560 mm; 2,947 mm; 3,269 mm (101 in; 116 in; 129 in)

Height

1,202 mm (48 in)

Depth

1,202 mm (48 in)

Load per Carrier

90 - 140 kg (198 - 308 lbs)
